Model
CD60

Item specifics

Type
Aluminum Electrolytic Capacitor
Application
AC / Motor
Package Type
Surface Mount
Capacitance
250uf
Rated Voltage
250VAC
Operating Temperature
25/70/21
Size / Dimension
50*100
Color
silver
Certificate
CE
case material
aluminum
Name
CD60 start 330uf 200v aluminum electrolytic capacitor

Review

Description

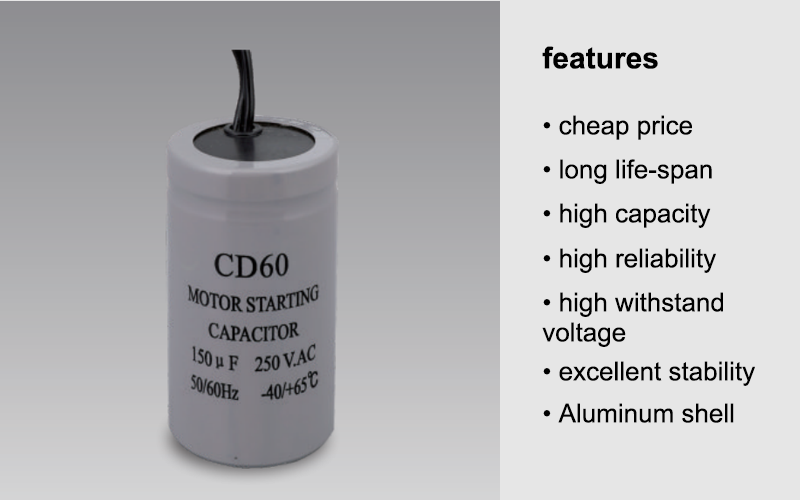

CD60 START CAPACITOR WITH ALUMINUM CASE AND 2 WIRES TYPE




1.Use round Aluminum shell,  and insulation plastic lid for sealing.

2.Flat bottom

3.Fasten terminals:two wires

4.Insulating sleeve outside the aluminum shell: grey or blue

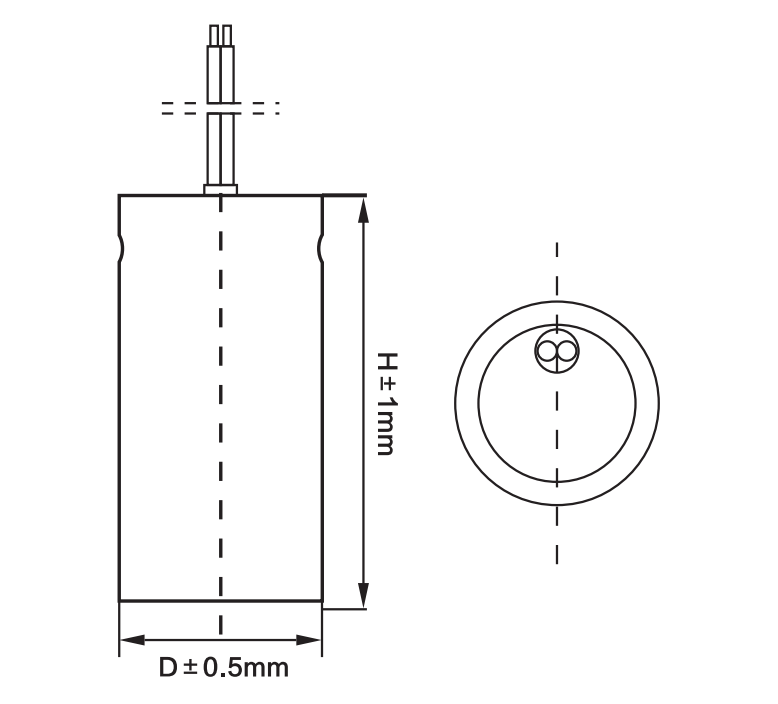

CD60 START CAPACITOR WITH ALUMINUM CASE AND 2 WIRES TYPE PRODUCT ANATOMY

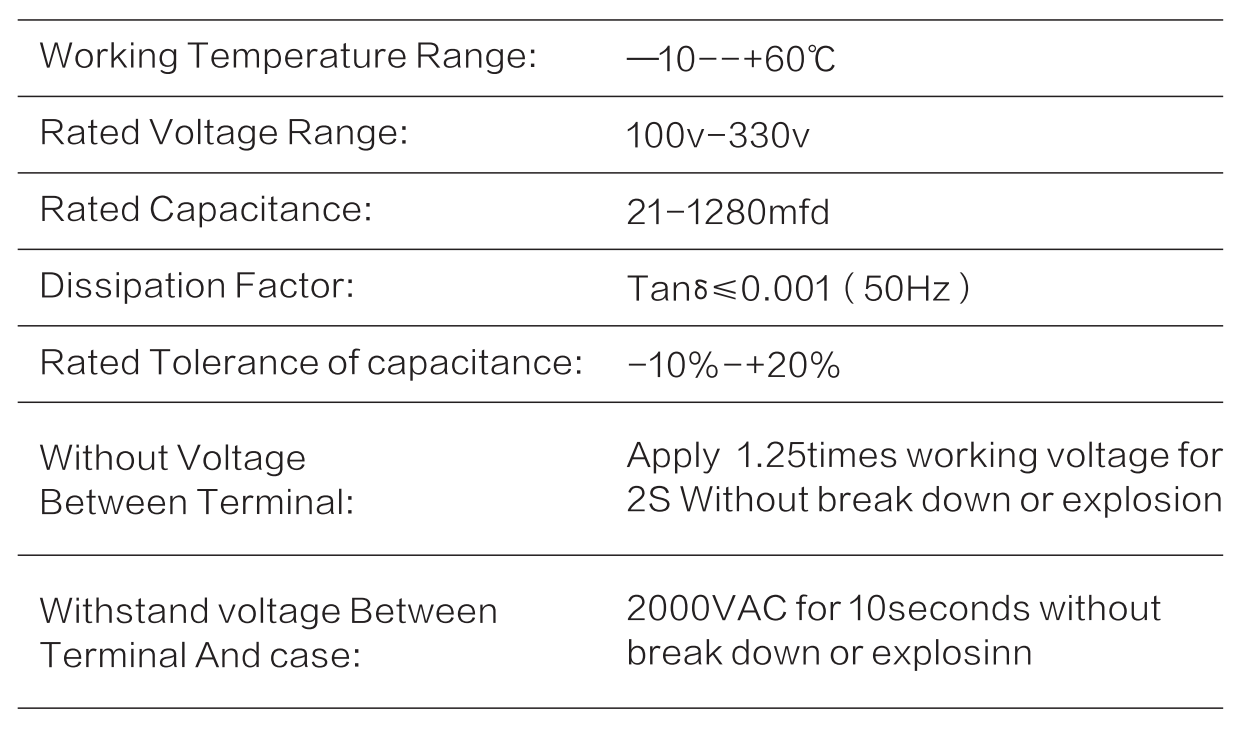

CD60 START CAPACITOR WITH ALUMINUM CASE AND 2 WIRES TYPE SPECIFICATION





CD60 START CAPACITOR WITH ALUMINUM CASE AND 2 WIRES TYPE USAGES




▷The motor start capacitor is range of AC electrolytic capacitors. These capacitors are most often used to provide the torque necessary to start AC motors and in other intermittent AC applications.



CD60 START CAPACITOR WITH ALUMINUM CASE AND 2 WIRES TYPE SIZE LIST


CD60 aluminum case type size list

Capacity(uf)

size(mm)for 125V

Capacity(uf)

size(mm)for 250V

Capacity(uf)

size(mm)for 330V

50

34*70

50

  42*80

50

34*70

75

34*70

75

42*70

75

34*70

100

34*70

100

42*70

100

34*70

120

34*70

120

42*70

120

42*70

150

34*70

150

42*80

150

42*70

180

34*70

180

42*80

180

42*70

200

34*70

200

42*80

200

 42*80

250

34*70

250

50*100

250

 42*80

300

34*70

300

50*100

300

50*100

350

34*70

350

50*100

350

50*100

400

34*70

400

50*100

400

50*100

450

42*70

450

50*100

450

50*100

500

42*70

500

50*100

500

50*100

550

42*70

550

50*100

550

50*100

600

42*70

600

50*100

600

50*100

700

42*80

700

50*100

700

50*100

800

42*80

800

50*100

800

50*100

1000

45*90

1000

50*100

1000

50*100

1200

45*90

1200

50*100

1200

50*100
