Model
CD60

Item specifics

Type
Polypropylene Film Capacitor, Polypropylene Film Capacitor
Application
AC / Motor, AC/MOTOR
Package Type
Surface Mount, surface mount
Capacitance
1-24uf, 50-600UF
Rated Voltage
450V
Operating Temperature
40/70/21, 40/70/21
Roted Voltage
110V-330V
Certificate
CQC,ROHS,TUV,UL,CE
Material
ABS case
Description
Life-time: 1000-4000Hours
Color
Black

Review

Description


CD60 ALUMINUM ELECTROLYTIC CAPACITOR WITH BAKELITE CASE TYPE




1. This kind of capacitors are developed and researched according to standard of American Electronics Association (ANSI/EIA-463);

2. The external case of the capacitor is make of bakelite plasticized that its character are not only good insulating resistance and strong resistance damaged but also protecting electro-liquid as good sealed future.

3.With metal bracket

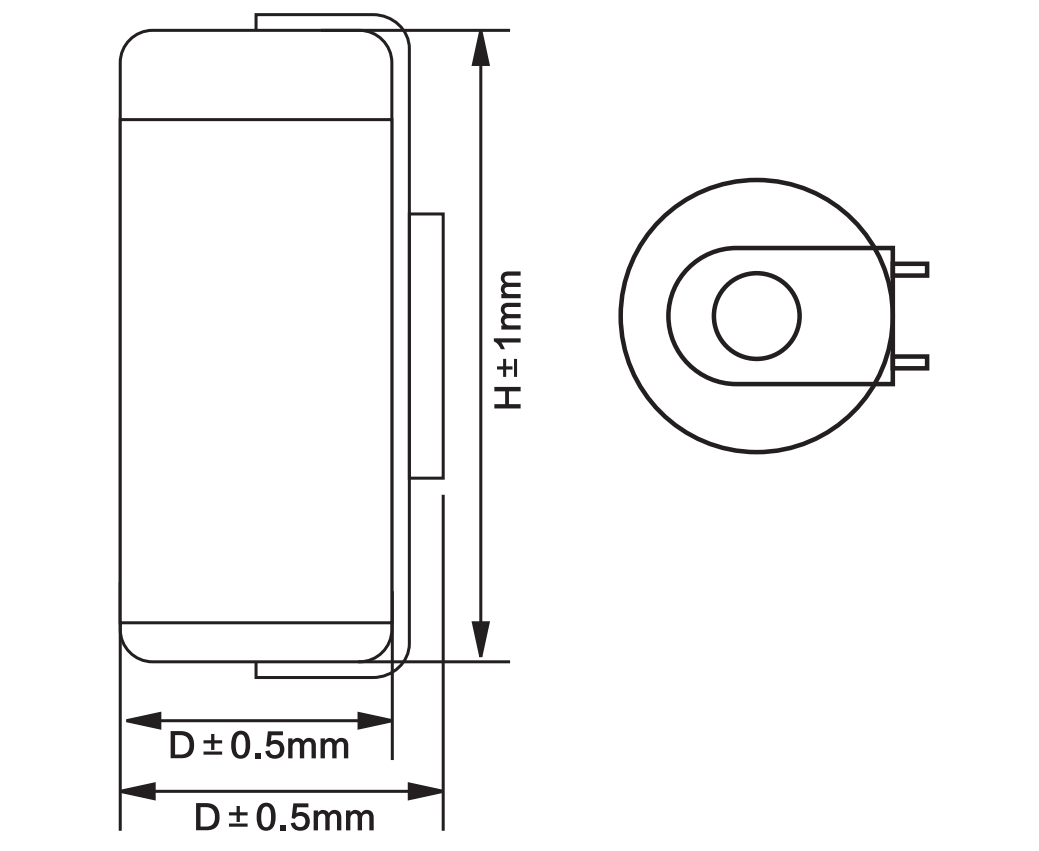

CD60 ALUMINUM ELECTROLYTIC CAPACITOR WITH BAKELITE CASE TYPE PRODUCT ANATOMY


MOTOR STARTING CAPACITOR ANATOMY

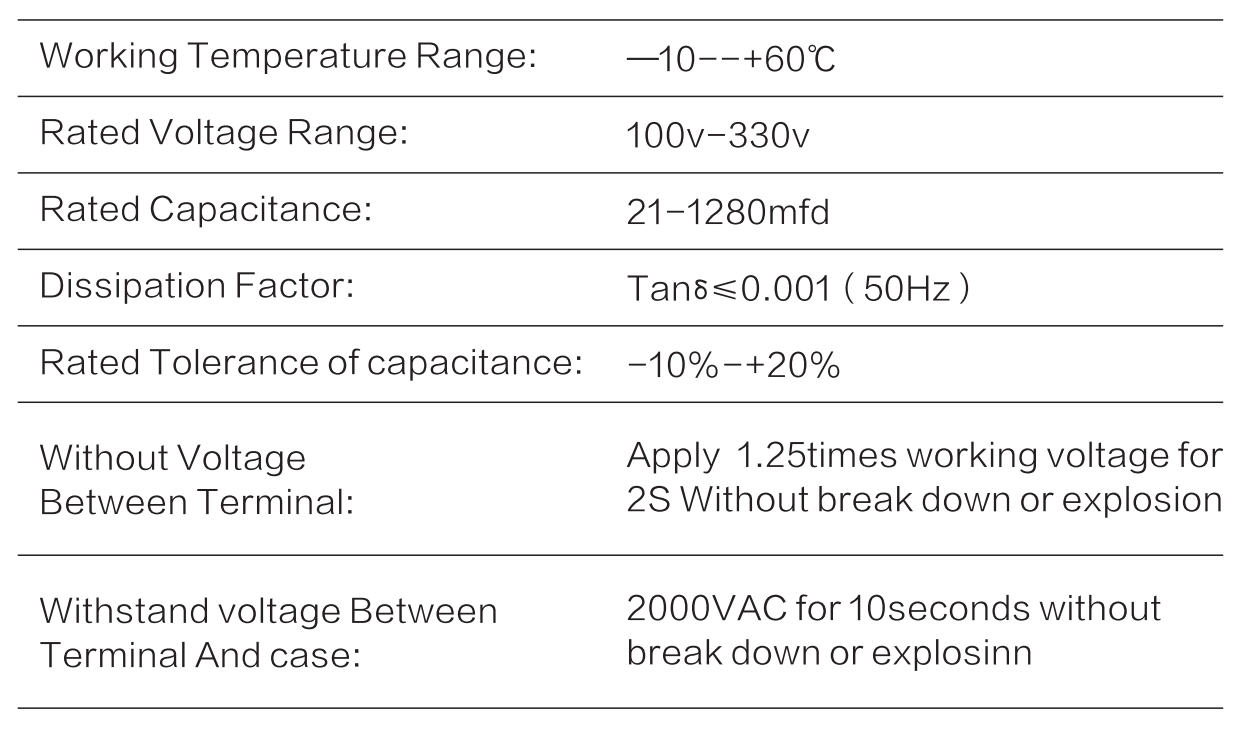

CD60 ALUMINUM ELECTROLYTIC CAPACITOR WITH BAKELITE CASE TYPE SPECIFICATION

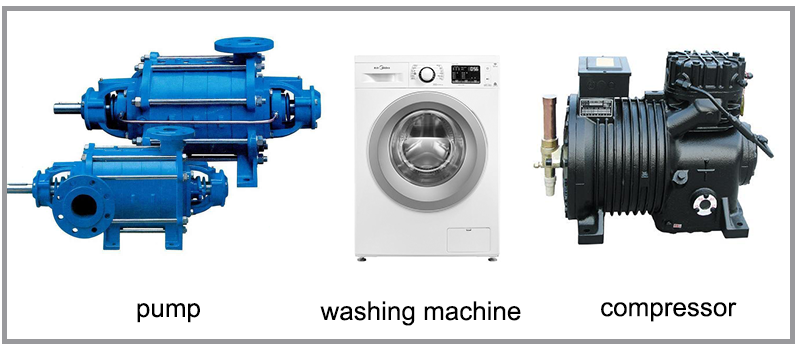

CD60 ALUMINUM ELECTROLYTIC CAPACITOR WITH BAKELITE CASE TYPE USAGES




▷The motor start capacitor is range of AC electrolytic capacitors. These capacitors are most often used to provide the torque necessary to start AC motors and in other intermittent AC applications.



CD60 ALUMINUM ELECTROLYTIC CAPACITOR WITH BAKELITE CASE TYPE SIZE LIST


CD60 America type size list

Capacity(uf)

size(mm)for 125V

Capacity(uf)

size(mm)for 220V

Capacity(uf)

size(mm)for 330V

88-108

36*70

21-25

  36*70

36-43

36*85

108-130

36*70

36-43

36*70

43-52

36*85

124-149

36*70

43-52

36*70

47-56

36*85

130-156

36*70

47-56

36*70

53-64

36*85

145-175

36*70

53-64

36*70

64-77

36*85

161-193

36*70

64-77

36*70

72-86

36*85

189-227

36*70

72-86

36*70

88-108

46*85

216-259

36*70

88-108

36*70

108-130

46*85

233-280

36*70

108-130

36*70

124-149

46*85

243-292

36*70

124-149

36*70

130-156

46*85

270-324

36*70

130-156

36*70

145-175

46*85

324-389

36*70

145-175

36*70

161-193

46*85

340-408

36*70

161-193

46*85

189-227

46*111

378-454

36*85

189-227

46*85

216-259

46*111

400-480

36*85

216-259

46*85

233-280

46*111

430-516

36*85

233-280

46*85

243-292

46*111

460-552

36*85

243-292

46*85

270-324

46*111

540-648

36*85

270-324

46*85

324-389

46*111

590-708

46*85

324-389

46*85

340-408

46*111

645-774

46*85

340-408

46*85

378-454

46*111

708-850

46*85

378-454

46*85

400-480

46*111

720-864

46*85

400-480

46*85



829-995

46*85

430-516

46*85



850-1020

46*85

460-552

46*85



1000-1200

46*111

540-648

46*85



1340-1608

46*111

590-708

46*111





645-774

46*111





708-850

46*111





720-864

46*111





829-995

46*111





850-1020

46*111





1000-1200

46*111
