250v 100uf cd60 motor starting capacitor with 4 pins terminal lowes aluminum electrolytic capacitor
- Model
- CD60
Item specifics
- Type
- Aluminum Electrolytic Capacitor
- Application
- AC / Motor
- Package Type
- Surface Mount
- Capacitance
- 20-1600uf
- Rated Voltage
- 110v-330v
- Operating Temperature
- -25/60
- Description
- ac motor start capacitor
- case
- aluminum
Review
Description
CD60 AC START CAPACITOR WITH ALUMINUM CASE AND FOUR PINS TYPE
1.Use round Aluminum shell, and insulation plastic lid for sealing.
2.Flat bottom
3.Fasten terminals: 4 pins
4.Insulating sleeve outside the aluminum shell: grey or blue

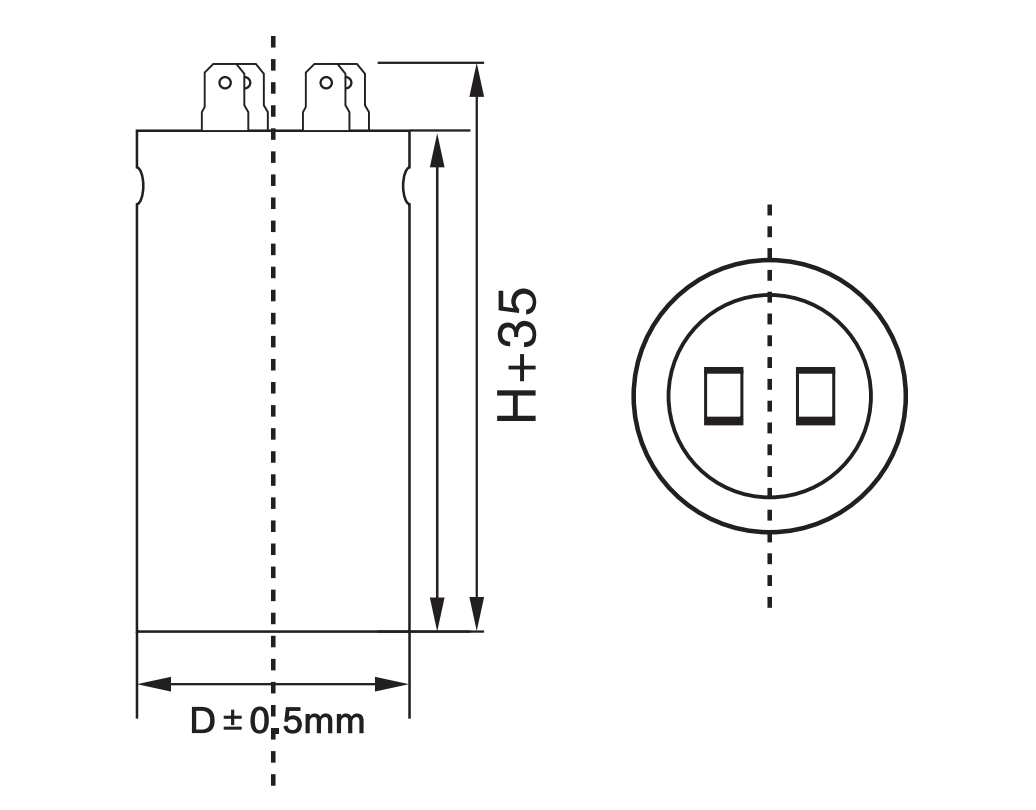

CD60 AC START CAPACITOR WITH ALUMINUM CASE AND FOUR PINS TYPE PRODUCT ANATOMY

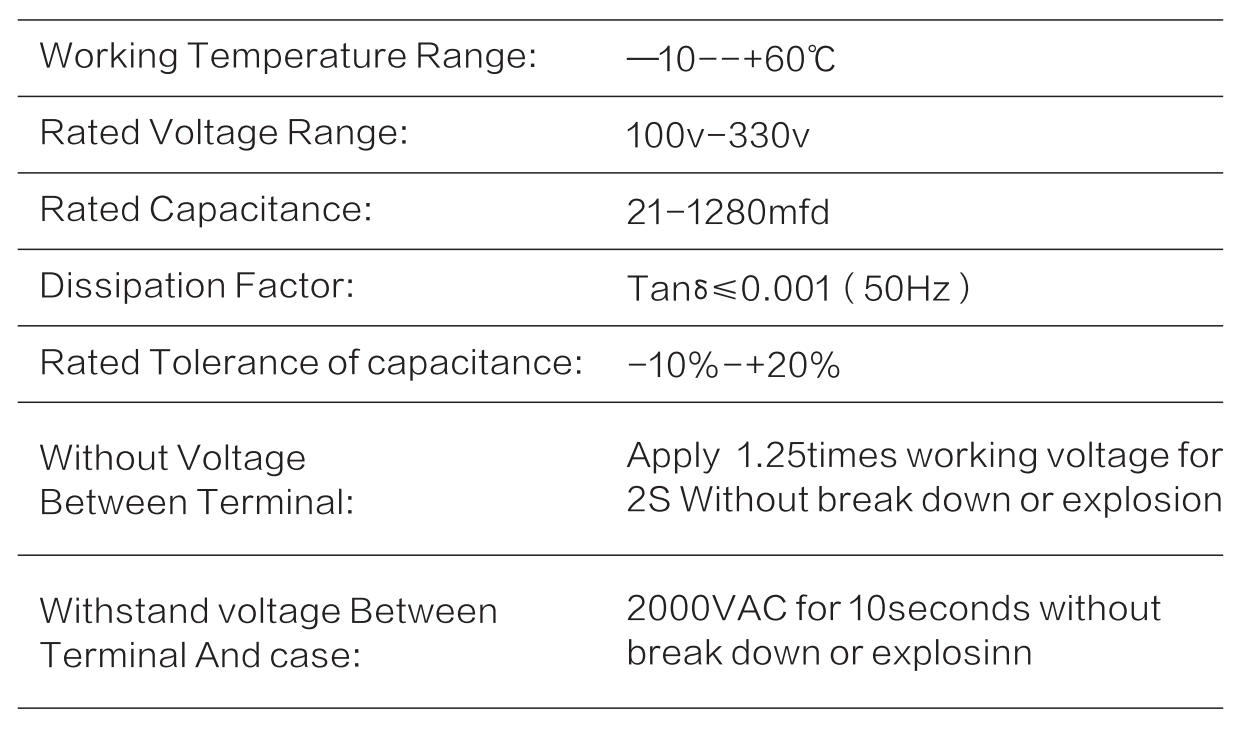

CD60 AC START CAPACITOR WITH ALUMINUM CASE AND FOUR PINS TYPE SPECIFICATION

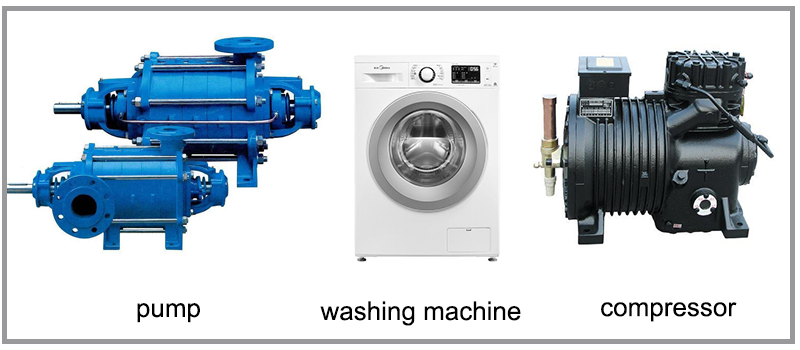

CD60 AC START CAPACITOR WITH ALUMINUM CASE AND FOUR PINS TYPE USAGE
▷The motor start capacitor is range of AC electrolytic capacitors. These capacitors are most often used to provide the torque necessary to start AC motors and in other intermittent AC applications.
CD60 AC START CAPACITOR WITH ALUMINUM CASE AND FOUR PINS TYPE SIZE LIST
CD60 aluminum case type size list | |||||
Capacity（uf） | size（mm）for 125V | Capacity（uf） | size（mm）for 250V | Capacity（uf） | size（mm）for 330V |
50 | 34*70 | 50 | 42*80 | 50 | 34*70 |
75 | 34*70 | 75 | 42*70 | 75 | 34*70 |
100 | 34*70 | 100 | 42*70 | 100 | 34*70 |
120 | 34*70 | 120 | 42*70 | 120 | 42*70 |
150 | 34*70 | 150 | 42*80 | 150 | 42*70 |
180 | 34*70 | 180 | 42*80 | 180 | 42*70 |
200 | 34*70 | 200 | 42*80 | 200 | 42*80 |
250 | 34*70 | 250 | 50*100 | 250 | 42*80 |
300 | 34*70 | 300 | 50*100 | 300 | 50*100 |
350 | 34*70 | 350 | 50*100 | 350 | 50*100 |
400 | 34*70 | 400 | 50*100 | 400 | 50*100 |
450 | 42*70 | 450 | 50*100 | 450 | 50*100 |
500 | 42*70 | 500 | 50*100 | 500 | 50*100 |
550 | 42*70 | 550 | 50*100 | 550 | 50*100 |
600 | 42*70 | 600 | 50*100 | 600 | 50*100 |
700 | 42*80 | 700 | 50*100 | 700 | 50*100 |
800 | 42*80 | 800 | 50*100 | 800 | 50*100 |
1000 | 45*90 | 1000 | 50*100 | 1000 | 50*100 |
1200 | 45*90 | 1200 | 50*100 | 1200 | 50*100 |
