film capacitors 10uf 400v cbb61 ac motor run capacitor ceiling fan capacitor 3 wire price

Group CBB61 Fan capacitor
Min. Order 1 piece
Terms of Payment all
Update Time 2019-08-20
Item specifics
TypePolypropylene Film Capacitor
ApplicationAC / Motor
Package TypeSurface Mount
Capacitance1-40uf
Rated Voltage250/450v
Operating Temperature40/70/21
ac motorABS case

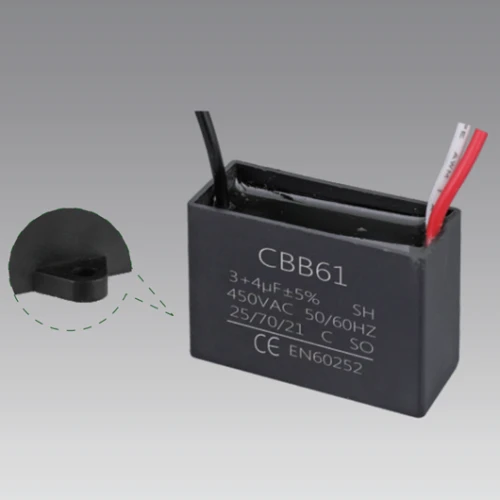

CBB61 FUN RUN CAPACITOR WITH 3 WIRES TYPE




1. Use square plastic shell, and insulation sealed lid for sealing plastic lid for sealing or resin for sealing.

2. Fasten terminals: three wires



CBB61 FUN RUN CAPACITOR WITH 3 WIRES TYPE PRODUCT ANATOMY





CBB61 FUN RUN CAPACITOR WITH 3 WIRES TYPE PARAMETER





CBB61 FUN RUN CAPACITOR WITH 3 WIRES TYPE USAGES



▷It is widely used as the start--up and running capacitor. That is specially for electric fan, air-conditioner, electric water pump andelectric motor etc.
▷With frequency 50/60Hz, voltage 250VAC, and can help motors start and run.



CBB61 FUN RUN CAPACITOR WITH 3 WIRES TYPE SIZE LIST


CBB61 3 wires type size list

Capacity(uf)

Size (450V)

Size (250V)

Capacity(uf)

Size (450V)

Size (250V)

1uf

36*11*22

32*10*20

7uf

47*20*37

38*17*28

1.2uf

36*11*22

32*10*20

8uf

48*23*35

38*17*28

1.5uf

37*13*23

32*10*20

10uf

48*23*35

38*20*31

1.8uf

37*13*23

32*10*20

12uf

47*25*43

47*17*28

2uf

37*13.5*24

32*10*20

15uf

58*25*42

47*19*31

2.2uf

37*15*25

32*10*20

16uf

58*25*42

47*19*33

2.5uf

37*15*25

32*10*20

18uf

58*32*44

47*23*35

3uf

38*15.5*25

36*11*22

20uf

58*32*44

47*25*35

3.3uf

37*17*28

36*11*22

24uf

58*32*44

58*25*42

3.5uf

38*18.5*29

36*11*22

25uf

58*28*50

58*25*42

4uf

47*17*28

37*13*23

30uf

58*31*57

57*32*44

4.5uf

47*17*28

37*13*23

35uf

58*31*57

57*32*44

5uf

47*17*28

37*13.5*24

40uf

58*31*57

58*31*57

6uf

47*19*31

38*15*25
