Model
CBB60

Item specifics

Type
Polypropylene Film Capacitor
Application
AC / Motor
Package Type
Surface Mount
Capacitance
1-100uf
Rated Voltage
450V/250V
Operating Temperature
25/70/21
Material of Case
PP ABS
Description
ac running capacitor
Connection way
2 pins

Product review

Description

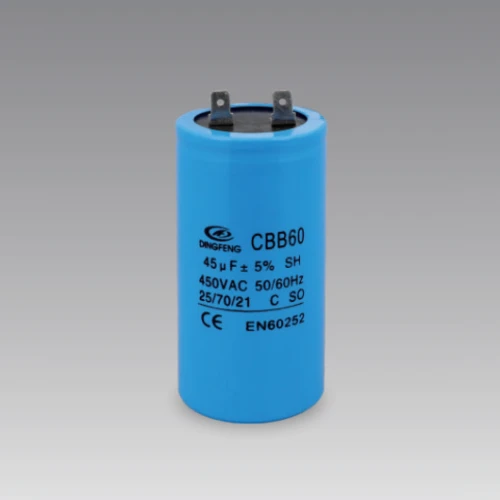

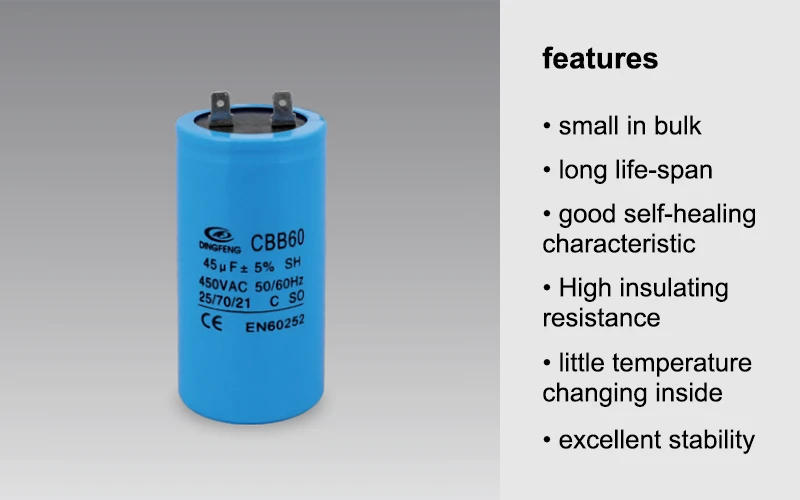

AC MOTOR CAPACITOR CBB60 ALUMINUM SHELL WITH 2 PINS


AC MOTOR CAPACITOR CBB60 WITH 2 PINS


1.aluminum case and protective device structure

2.Flat bottom

3.Fasten terminals: 2 pins



AC MOTOR CAPACITOR CBB60 ALUMINUM SHELL WITH 2 PINS ANATOMY


AC RUNNING CAPACITOR TWO PINS ANATOMY

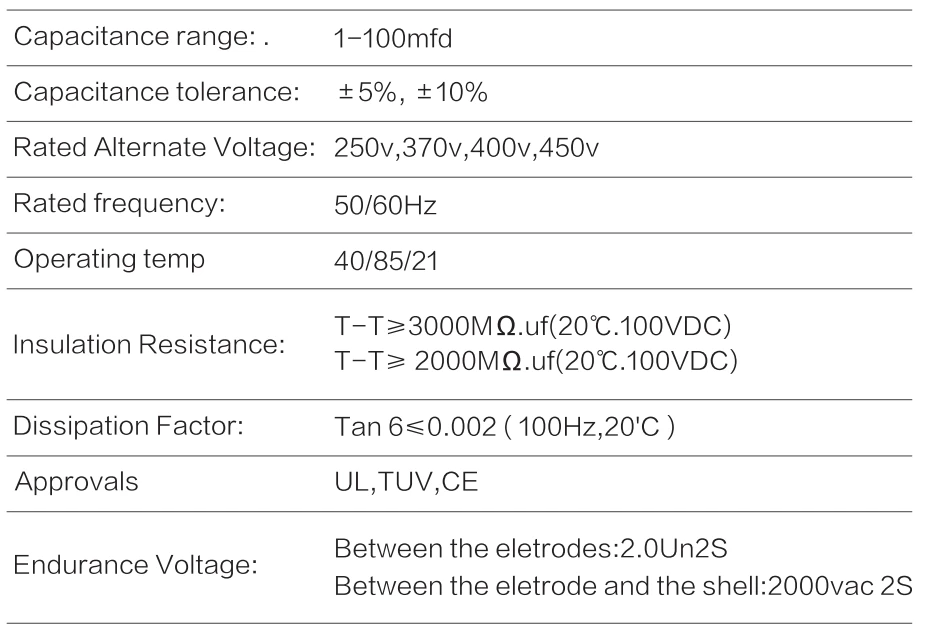

AC MOTOR CAPACITOR CBB60 ALUMINUM SHELL WITH 2 PINS SPECIFICATION





AC MOTOR CAPACITOR CBB60 ALUMINUM SHELL WITH 2 PINS USAGES


CBB60 CAPACITOR UASGES


▷Suitable for starting and operating 50Hz(60Hz)AC Single-phase household electrical appliances.
▷Widely used as the start-up and running capacitor that is special for micro-water pump,cleaning machines,and single-phase household electrical appliances.

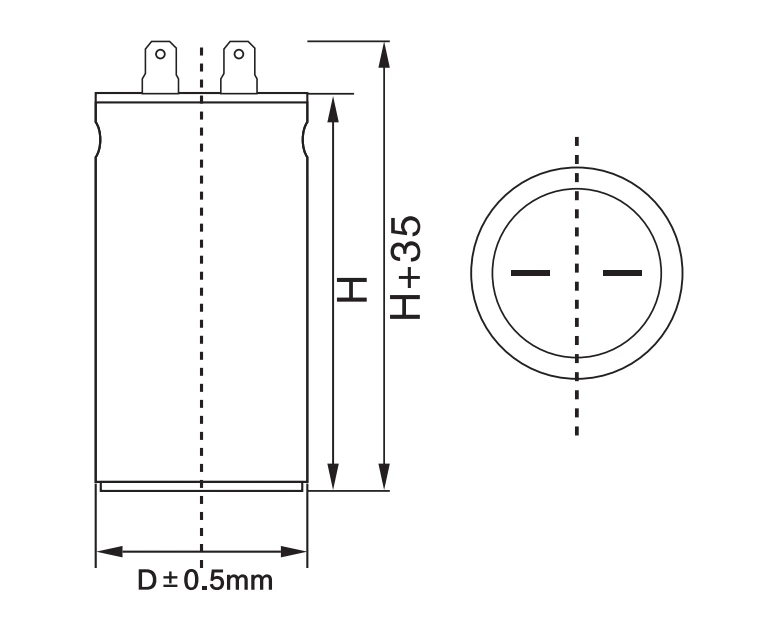

AC MOTOR CAPACITOR CBB60 ALUMINUM SHELL WITH 2 PINS SIZE LIST


CBB60 2 pins type size list

Capacity(uf)

Size (450V)

Size (250V)

Capacity(uf)

Size (450V)

Size (250V)

1uf

30*60

30*60

18uf

40*70

35*60

2uf

30*60

30*60

20uf

40*70

35*60

3uf

30*60

30*60

25uf

45*70

35*70

4uf

30*60

30*60

30uf

45*70

40*70

5uf

30*60

30*60

35uf

45*93

40*70

6uf

30*60

30*60

40uf

45*93

40*70

7uf

30*60

30*60

45uf

50*92

45*70

8uf

35*60

30*60

50uf

50*92

45*70

9uf

35*60

30*60

55uf

50*92

45*93

10uf

35*60

30*60

60uf

50*100

45*93

12uf

35*70

30*60

70uf

55*120

50*92

14uf

35*70

30*60

80uf

55*120

50*92

15uf

40*70

35*60

90uf

55*120

50*100

16uf

40*70

35*60

100uf

55*120

50*100
