ac air conditioner microfarad capacitor cbb65 450v 60uf rohs capacitor

Group CBB65 Air condition capacitor
Min. Order 1 piece
Terms of Payment all
Update Time 2019-08-22
Item specifics
TypeAluminum Electrolytic Capacitor
ApplicationAC / Motor
Package TypeSurface Mount
Capacitance20-1600uf
Rated Voltage110v-330v
Operating Temperature-25/60
casealuminum
ColorGrey
CertificateUL.CE.TUV
Capacitance range1-100mfd
Rated alternate Voltage250V.370V.400V.450V
Reference standardIEC 60252, GB/T 3667-2008 for starting capacitor
Safety ProtectionP0, P1,P2 starting capacitor
Fillingwax in starting capacitor
MaterialAluminum
Capacitance tolerance10%(K)

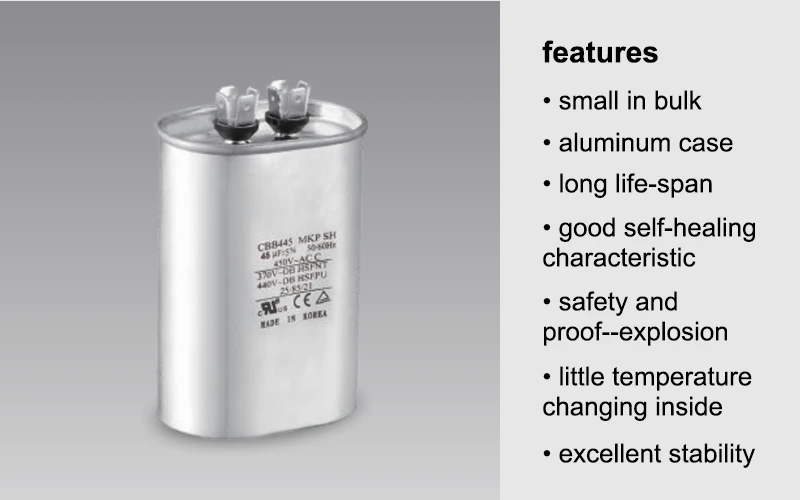

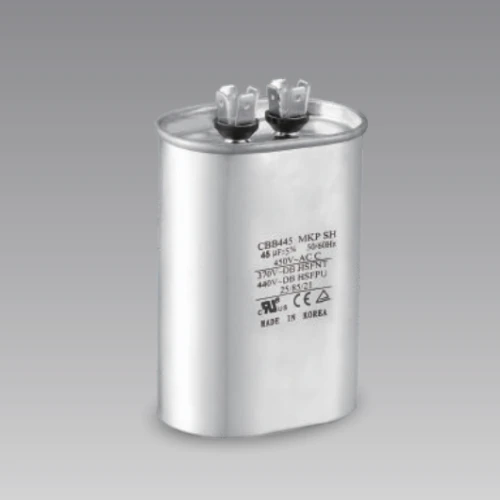

CBB65 RUN CAPACITOR WITH OVAL AND TWO PINS




1.Use oval Aluminum shell,  Aluminum lid for sealing.

2.Flat bottom

3.Fasten terminals: two pins 4+4

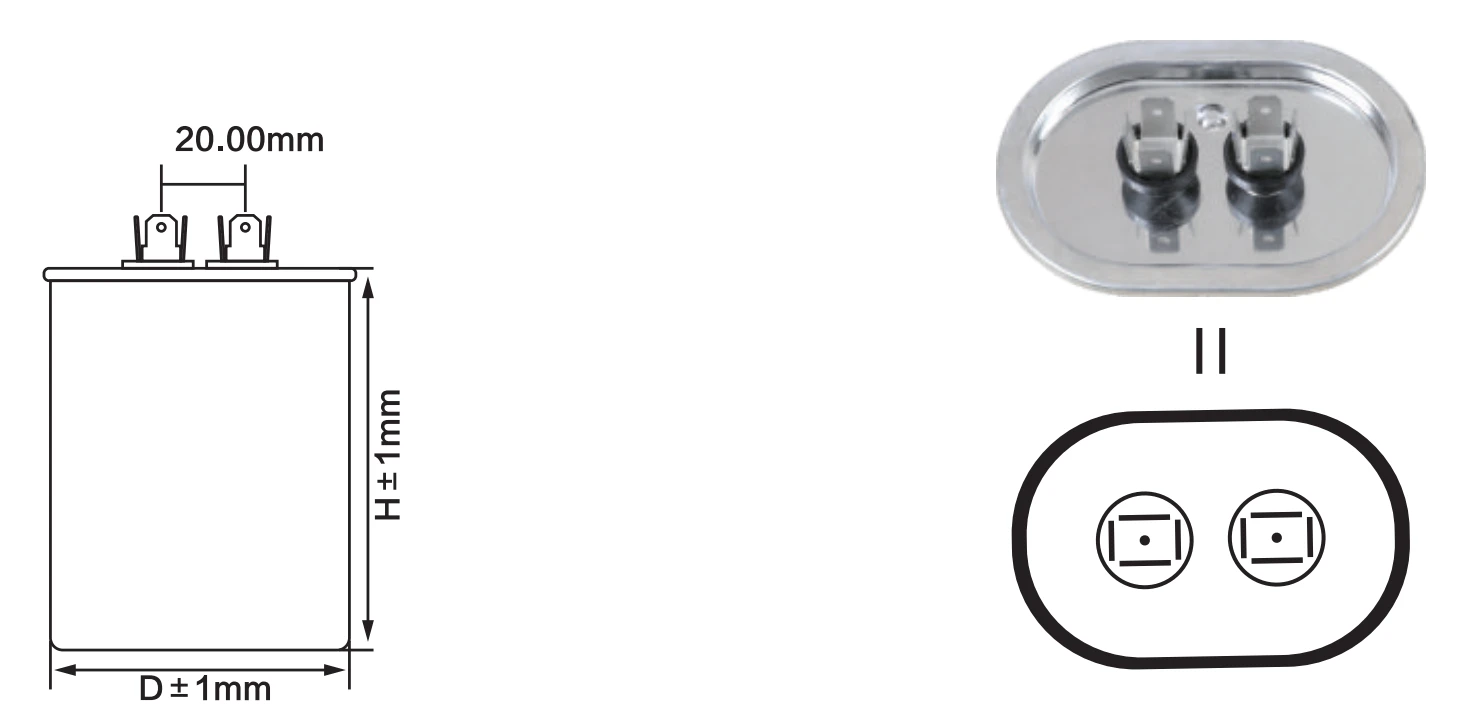

CBB65 RUN CAPACITOR WITH OVAL AND TWO PINS TYPE PRODUCT ANATOMY

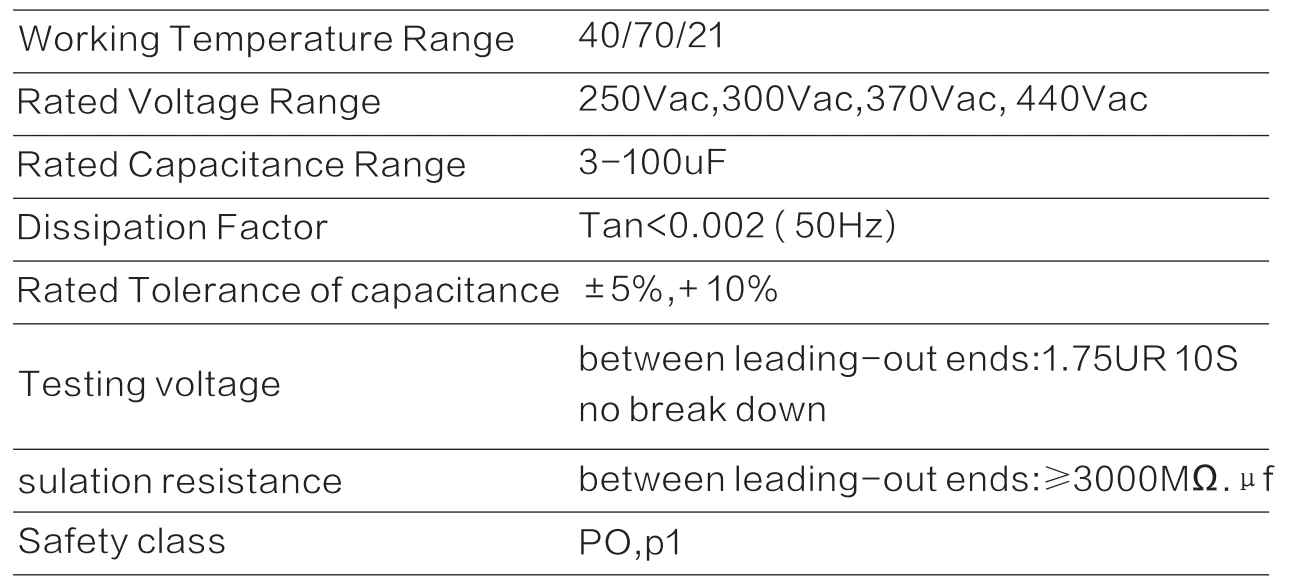

CBB65 RUN CAPACITOR WITH OVAL AND TWO PINS SPECIFICATION





CBB65 RUN CAPACITOR WITH OVAL AND TWO PINS TYPE USAGES




▷The products is suitable for home appliance like air--conditioners,air-coolers,freezers and washing machine.etc



CBB65 RUN CAPACITOR WITH OVAL AND TWO PINS TYPE SIZE LIST


CBB65 oval 4+4 type size list

Capacity(uf)

L ( mm )

W ( mm )

H ( mm )

Capacity(uf)

L ( mm )

W ( mm )

H ( mm )

5uf

51.5

31.5

60

30+5uf

71.5

45

110

7.5uf

51.5

31.5

60

30+6uf

71.5

45

110

10uf

51.5

31.5

60

35+5uf

71.5

45

110

15uf

51.5

31.5

85

35+6uf

71.5

45

110

20uf

51.5

31.5

70

40+5uf

71.5

45

120

25uf

71.5

45

80

40+6uf

71.5

45

125

30uf

71.5

45

85

45+5uf

71.5

45

125

35uf

71.5

458545+6uf

71.5

45125

40uf

71.5

45

100

50+5uf

71.5

45

125

45uf

71.5

45

100

55+5uf

71.5

45

130

50uf

71.5

45

100

50+7.5uf

71.5

45

130

60uf

71.5

45

110

60+5uf

71.5

45

130

70uf

71.5

45

110

65+5uf

71.5

45

130

80uf

71.5

45

110
