Model
CBB65

Item specifics

Type
Film Capacitor
Application
AC / Motor
Package Type
Surface Mount
Capacitance
20-1600uf
Rated Voltage
110v-330v
Operating Temperature
-25/60
case
aluminum
Color
Grey
Certificate
UL.CE.TUV
Capacitance range
1-100mfd
Rated alternate Voltage
250V.370V.400V.450V
Reference standard
IEC 60252, GB/T 3667-2008 for starting capacitor
Safety Protection
P0, P1,P2 starting capacitor
Filling
wax in starting capacitor
Material
Aluminum
Capacitance tolerance
10%(K)

Product review

Description

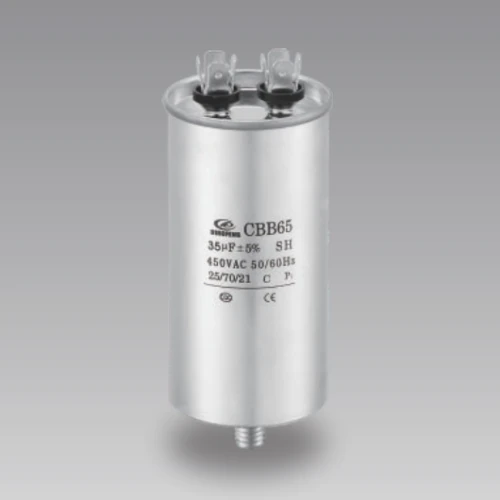

CBB65 MOTOR RUN CAPACITOR WITH FIXING STUD TYPE

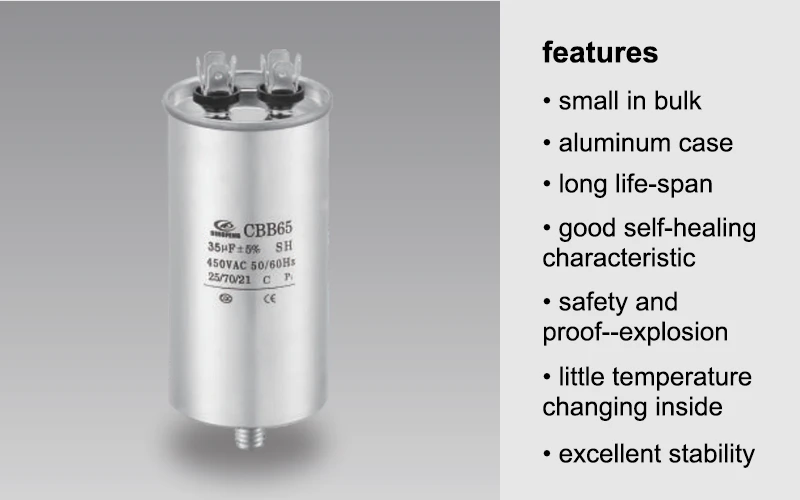

CBB65 MOTOR RUN CAPACITOR FEATURE


1.Use round Aluminum shell,  Aluminum lid for sealing.

2.Fixing stud M8*12

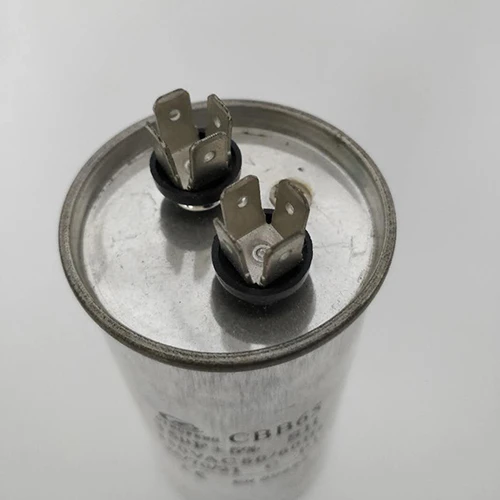

3.Fasten terminals: two pins 4+4



CBB65 MOTOR RUN CAPACITOR WITH FIXING STUD TYPE PRODUCT ANATOMY

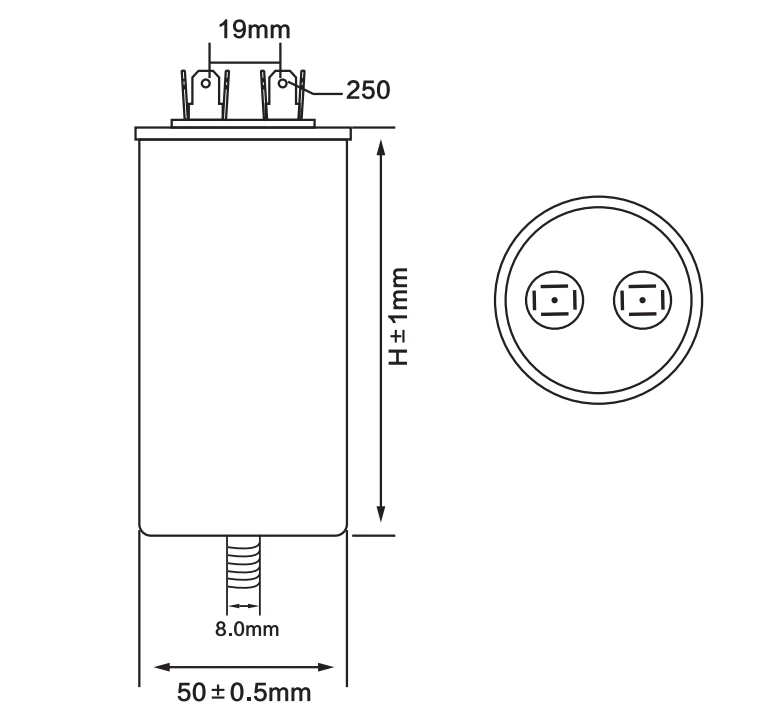

CBB65 MOTOR RUN CAPACITOR WITH FIXING STUD TYPE SPECIFICATION





CBB65 MOTOR RUN CAPACITOR WITH FIXING STUD TYPE USAGES




▷The products is suitable for home appliance like air--conditioners,air-coolers,freezers and washing machine.etc



CBB65 MOTOR RUN CAPACITOR WITH FIXING STUD TYPE SIZE LIST


CBB65 two pins 4+4 type size list

Capacity(uf)

D ( mm )

H ( mm )

Capacity(uf)

D ( mm )

H ( mm )

5uf

40

60

30+5uf

50

100

7.5uf

40

60

30+6uf

50

100

10uf

40

60

35+5uf

50

100

15uf

40

70

35+6uf

50

100

20uf

40

75

40+5uf

50

110

25uf

45

75

40+6uf

50

110

30uf

50

85

45+5uf

50

125

35uf

508545+6uf50125

40uf

50

85

50+5uf

50

125

45uf

50

100

55+5uf

50

125

50uf

50

100

50+7.5uf

50

125

60uf

50

110

60+5uf

50

130

70uf

50

125

65+5uf

50

130

80uf

50

125
