Model
CBB80

Item specifics

Type
Polypropylene Film Capacitor
Application
AC / Motor, LIGHT capacitor
Package Type
Surface Mount
Capacitance
1UF-55UF
Rated Voltage
370VAC.400VAC.440VAC.450VAC.
Operating Temperature
-25----+85
COLOUR
WHITE
TERMINAL
WIRE
SCREW
WUTH NUT AND WASHER OR NOT
Filling
Resin
Safety Protection
P0, P2
Standard
IEC 60252, GB/T 3667-2008
name
450V 25cm cable 25uf cbb60 sh capacitor 50 60 hz
Certificate
RoHS/CE/ISO9000
Color
White

Product review

Description

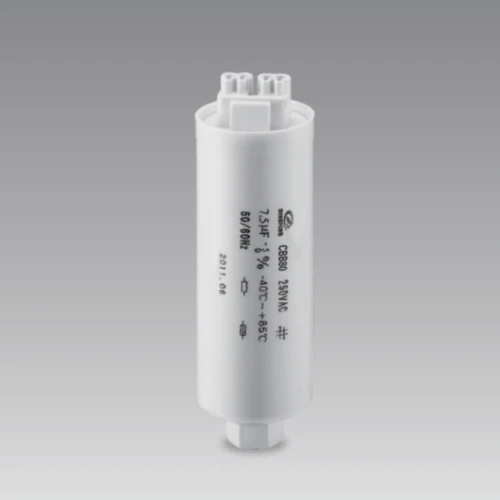

CBB80 LAMPS RUN CAPACITOR WITH INSERT TYPE




1.Use round plastic shell

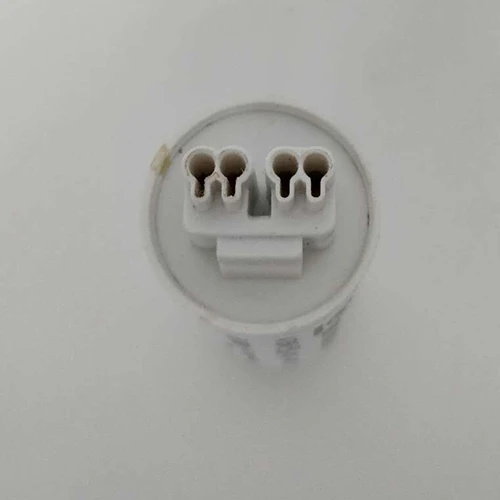

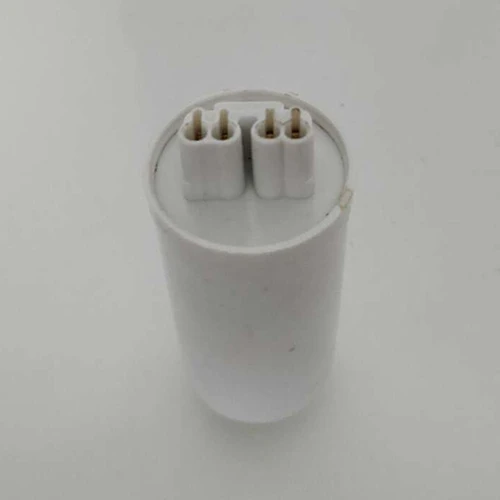

2.Fasten terminals: Insert

3.Plastic can be ABS or PC

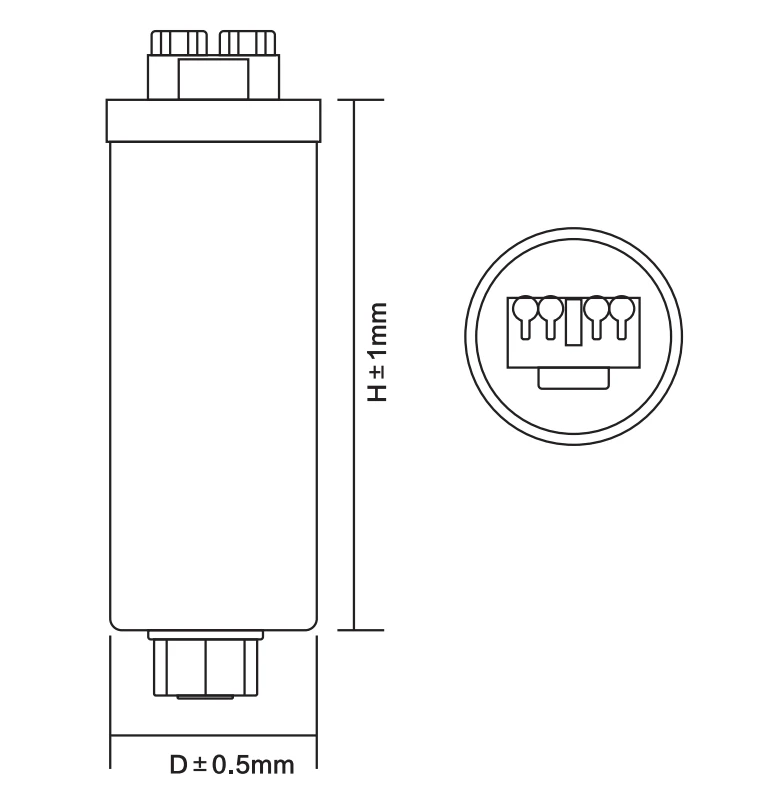

CBB80 LAMPS RUN CAPACITOR WITH INSERT TYPE PRODUCT ANATOMY


lighting capacitor anatomy

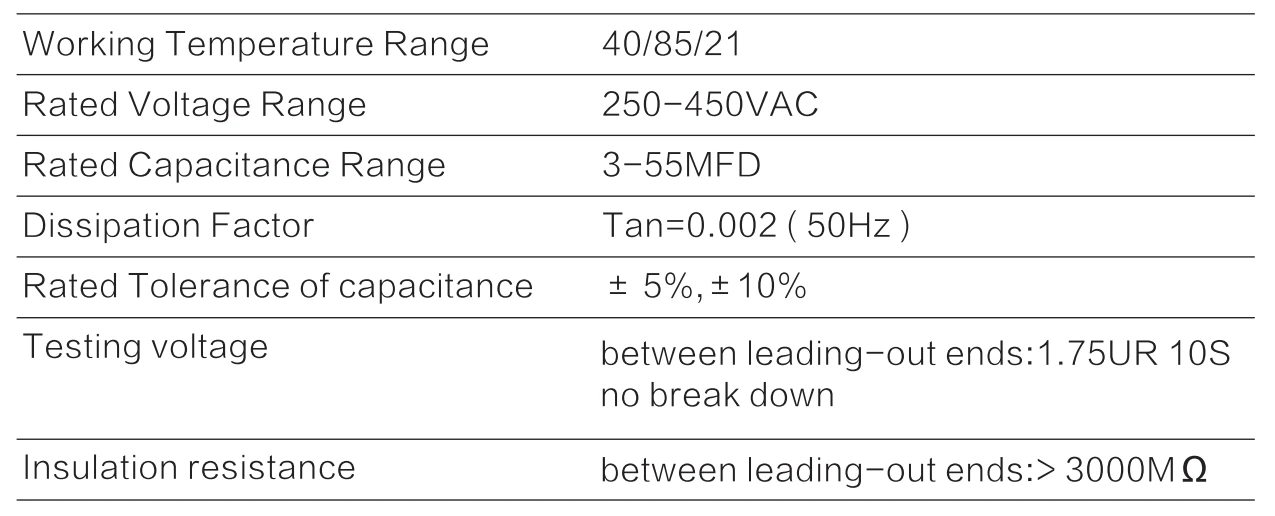

CBB80 LAMPS RUN CAPACITOR WITH INSERT TYPE SPECIFICATION




CBB80 LAMPS RUN CAPACITOR WITH INSERT TYPE USAGES

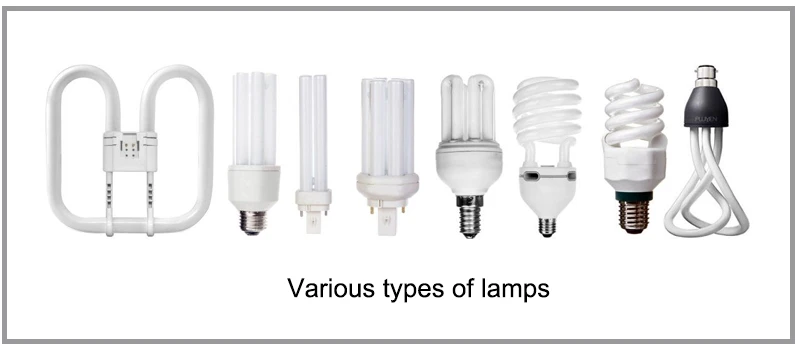

▷This range of capacitor is suitable for fluorescent lamps,high or low pressure sodium lamps,mercury lamps and metal halide lamps functioned as power factor compensation.



CBB80 LAMPS RUN CAPACITOR WITH INSERT TYPE SIZE LIST


CBB80 with insert size list

Capacity(uf)

D ( mm )

H ( mm )

Capacity(uf)

D ( mm )

H ( mm )

3uf

30

60

18uf

30

80

4.5uf

30

60

24uf

30

90

8uf

30

60

32uf

42

70

10uf

30

60

35uf

42

70

15uf

30

80

55uf

42

90
