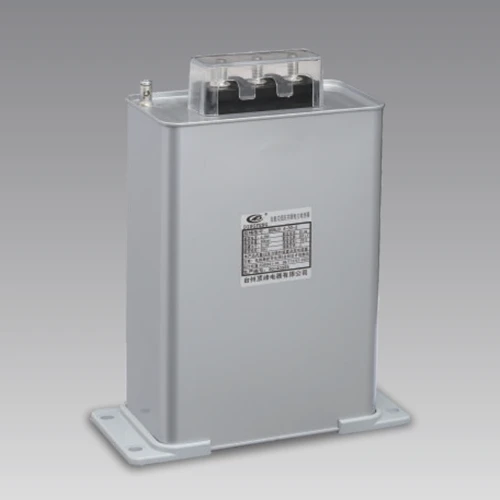

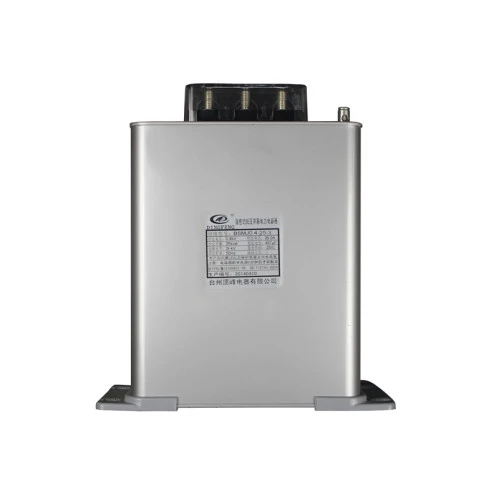

dingfeng capacitor supplier three-phase 415v intelligent and low voltage starmade power capacitor
dingfeng capacitor supplier three-phase 415v intelligent and low voltage starmade power capacitor
dingfeng capacitor supplier three-phase 415v intelligent and low voltage starmade power capacitor
dingfeng capacitor supplier three-phase 415v intelligent and low voltage starmade power capacitor
dingfeng capacitor supplier three-phase 415v intelligent and low voltage starmade power capacitor
Model
BSMJ

Item specifics

Type
Polypropylene Film Capacitor
Application
Power
Package Type
Surface Mount
Capacitance
5-60kvar
Rated Voltage
450V
Operating Temperature
-25~75℃
Color
Silver
Certificate
CCC
Feature
compensation
size:
270*120*200mm
Name
three-phase 415v intelligent power capacitor

Product review

Description

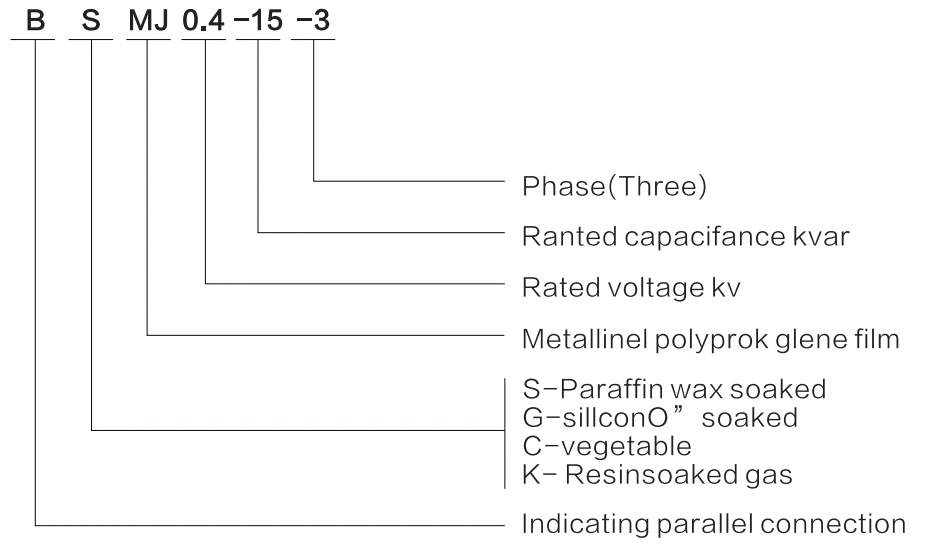

BSMJ THREE-PHASE POWER CAPACITOR MODEL AND IMPLICATION




1. This kind of capacitors has applied the Zn-Al complex metalized film,which is the most advanced in our country at present;

2. It also adopts the advanced foreign production technology and techniques as well as the leading-edge equipment from Japan and Korea;

3. This kind of capacitor is produced according to the international GB/T12747-2004 and the international standard of IEC60831-1(1996).

4. Fasten terminals: 3 Fixing stud.

5. Square aluminum shell with base.

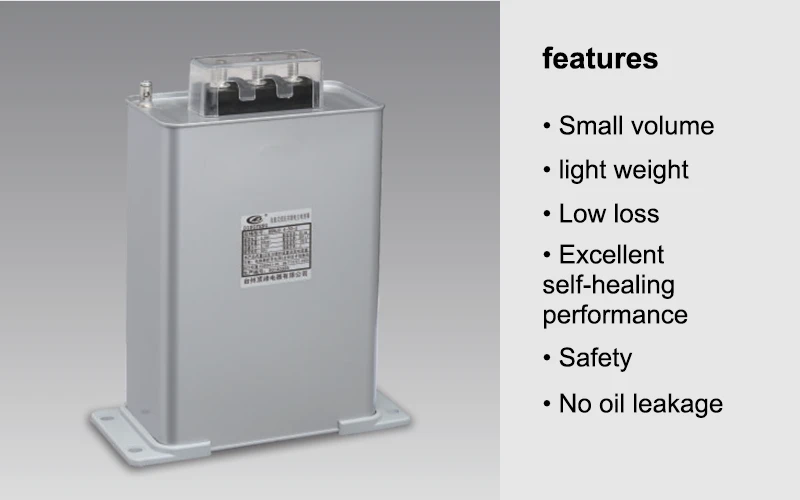

BSMJ THREE-PHASE POWER CAPACITOR FEATURES


  capacitor manufacturer 5kvar capacitor bank with capaictor values and capacitor types


1. Small volume, light weight: its volume and weight are only 1/4 or 1/5 of the previous products.


2. Low loss: the angle tangent value of the actual loss is lessthan 0.01%, which contributes to the low energy consumption for the capacitor it self, little heat and small temperature rise. Therefore, its service life is longer and the energy conservation effect is better.


▷3. Excellent self-healing performance: When a part of theissolation is punctured through due to the over voltage, the product is capable of quick self-healing, which makes it continue to work as usual, thus the reliability is greatly improved.

▷4. Safety: it is equipped with self--discharging resistant and safety devices inside. The inner self-discharging resistant can discharge the attached electric power with in the capacitor, so that the safety device can cut off the electricity supply in time once there is something wrong with the capacitor. Consequently, the malfunction is hindered from further development and the usage safety is ensured.

▷5. No oil leakage: the capacitor has applied advanced half-solid soak materials whose melting point is higher than 70℃. this kind of material is environmentally friendly, which avoids pollution. Further more,the capacitor will not lose efficacy because of oil leakage either.



BSMJ THREE-PHASE POWER CAPACITOR PRODUCT ANATOMY


power capacitor anatomy

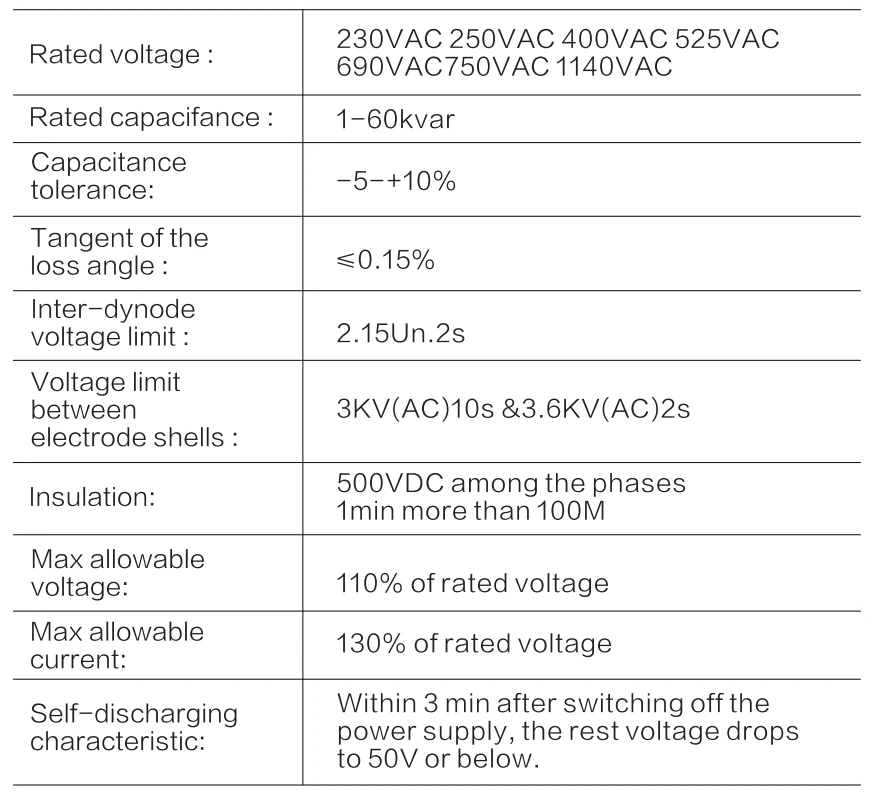

BSMJ THREE-PHASE POWER CAPACITOR TECHNICAL PARAMETERS

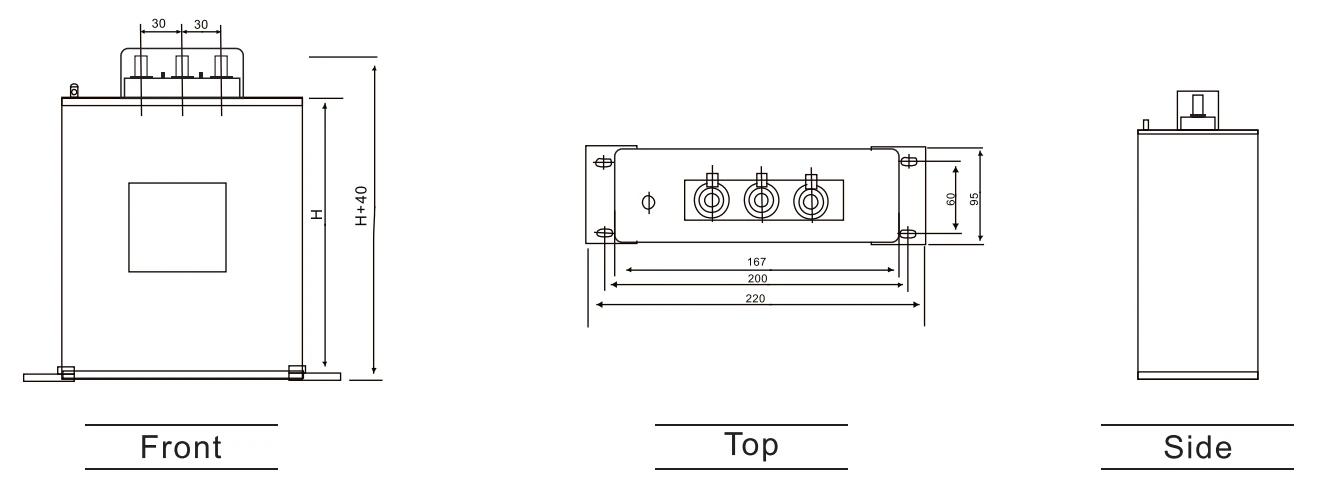

BSMJ THREE-PHASE POWER CAPACITOR SIZE LIST


Type

Outline size

Installation dimension

Type

Outline size

Installation dimension

BSMJ0.4/0.45/0.525/0.69-2-3

167*57*130

185*40

BSMJ0.4/0.45/0.525/0.69-16-3

167*57*180

185*40

BSMJ0.4/0.45/0.525/0.69-3-3

167*57*130

185*40

BSMJ0.4/0.45/0.525/0.69-18-3

167*57*180

185*40

BSMJ0.4/0.45/0.525/0.69-4-3

167*57*130

185*40

BSMJ0.4/0.45/0.525/0.69-20-3

167*57*210

185*40

BSMJ0.4/0.45/0.525/0.69-5-3

167*57*130

185*40

BSMJ0.4/0.45/0.525/0.69-25-3

167*85*210

200*60

BSMJ0.4/0.45/0.525/0.69-6-3

167*57*130

185*40

BSMJ0.4/0.45/0.525/0.69-30-3

167*85*210

200*60

BSMJ0.4/0.45/0.525/0.69-8-3

167*57*130

185*40

BSMJ0.4/0.45/0.525/0.69-35-3

167*85*250

200*60

BSMJ0.4/0.45/0.525/0.69-10-3

167*57*130

185*40

BSMJ0.4/0.45/0.525/0.69-40-3

167*85*250

200*60

BSMJ0.4/0.45/0.525/0.69-12-3

167*57*180

185*40

BSMJ0.4/0.45/0.525/0.69-50-3

167*85*290

200*60

BSMJ0.4/0.45/0.525/0.69-14-3

167*57*180

185*40

BSMJ0.4/0.45/0.525/0.69-60-3

270*120*200

300*78

BSMJ0.4/0.45/0.525/0.69-15-3

167*57*180

185*40
