lighting capacitor 3uf-55uf capacitor for uv lamp
- Model
- CBB80
Item specifics
- Type
- Polypropylene Film Capacitor
- Application
- AC / Motor, LIGHT capacitor
- Package Type
- Surface Mount
- Capacitance
- 1UF-55UF
- Rated Voltage
- 370VAC.400VAC.440VAC.450VAC.
- Operating Temperature
- -25----+85
- COLOUR
- WHITE
- TERMINAL
- WIRE
- SCREW
- WUTH NUT AND WASHER OR NOT
- Filling
- Resin
- Safety Protection
- P0, P2
- Standard
- IEC 60252, GB/T 3667-2008
- name
- 450V 25cm cable 25uf cbb60 sh capacitor 50 60 hz
- Certificate
- RoHS/CE/ISO9000
- Color
- White
Review
Description

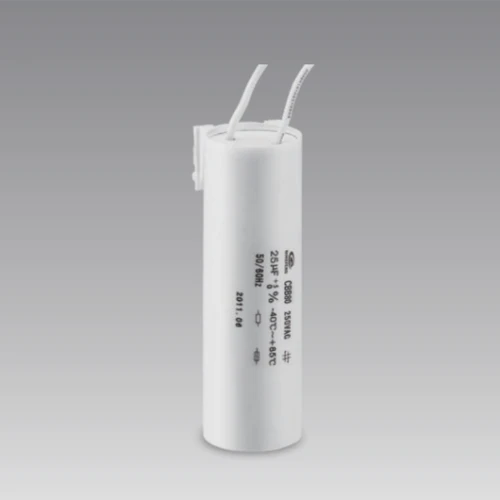

CBB80 LIGHTING RUN CAPACITOR WITH TWO WIRES TYPE
1.Use round plastic shell
2.Flat bottom
3.Fasten terminals: two wires
4.Plastic can be ABS or PC

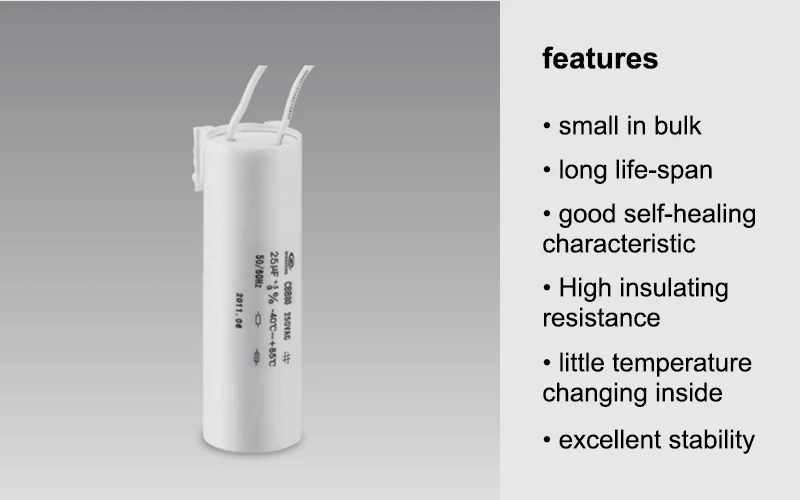

CBB80 LIGHTING RUN CAPACITOR WITH TWO WIRES TYPE PRODUCT ANATOMY

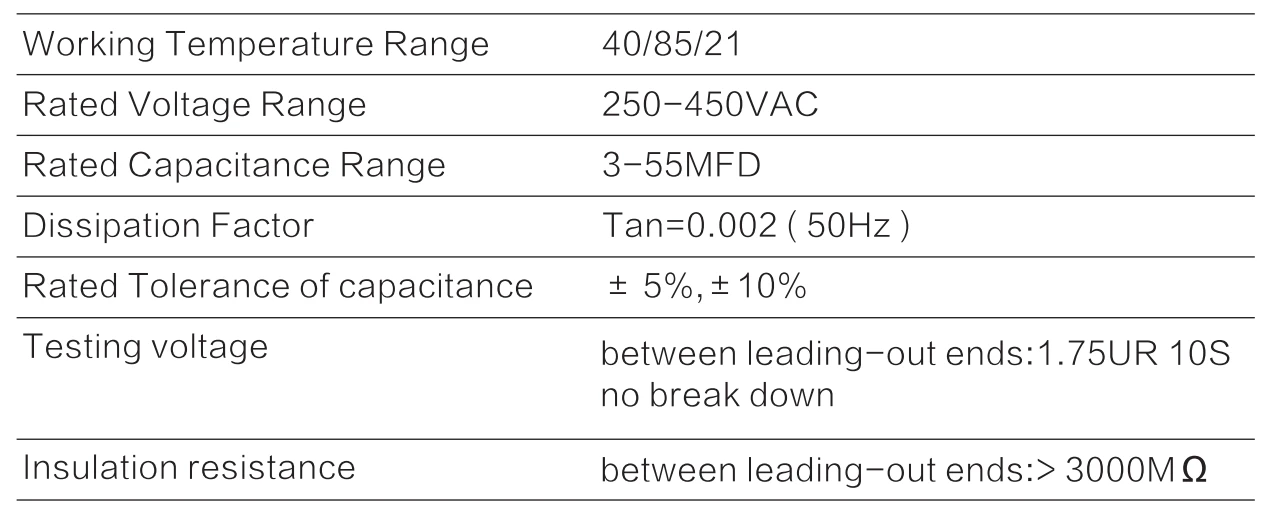

CBB80 LIGHTING RUN CAPACITOR WITH TWO WIRES TYPE SPECIFICATION

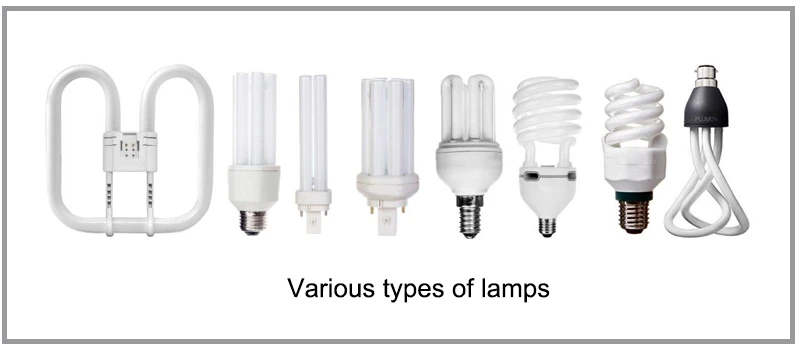

CBB80 LIGHTING RUN CAPACITOR WITH TWO WIRES TYPE USAGES
▷This range of capacitor is suitable for fluorescent lamps,high or low pressure sodium lamps,mercury lamps and metal halide lamps functioned as power factor compensation.

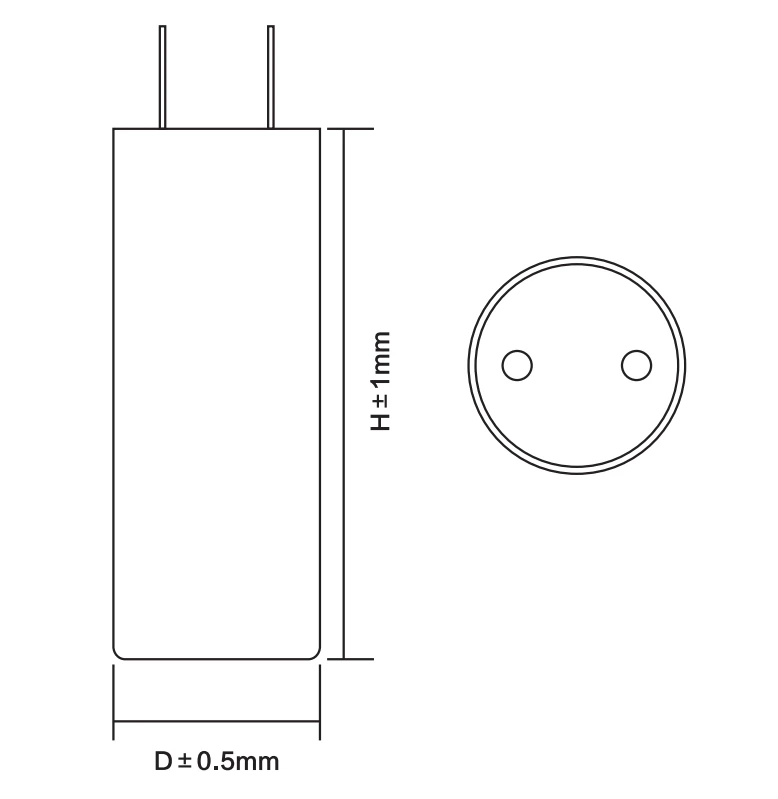

CBB80 LIGHTING RUN CAPACITOR WITH TWO WIRES TYPE SIZE LIST
CBB80 two wires size list | |||||
Capacity（uf） | D ( mm ) | H ( mm ) | Capacity（uf） | D ( mm ) | H ( mm ) |
3uf | 30 | 60 | 18uf | 30 | 80 |
4.5uf | 30 | 60 | 24uf | 30 | 90 |
8uf | 30 | 60 | 32uf | 42 | 70 |
10uf | 30 | 60 | 35uf | 42 | 70 |
15uf | 30 | 80 | 55uf | 42 | 90 |
