CBB60 250VAC water pump S H suitable for operating single-phase electromotor as the running capacitor
- Model
- CBB60
Item specifics
- Type
- Polypropylene Film Capacitor
- Application
- AC / Motor, pump capacitor
- Package Type
- Surface Mount
- Capacitance
- 1UF-100UF
- Rated Voltage
- 370VAC.400VAC.440VAC.450VAC.
- Operating Temperature
- -25-------+85
- COLOUR
- Gray
- TERMINAL
- Cable
- Filling
- Resin
- Safety Protection
- P0, P2
- Standard
- IEC 60252, GB/T 3667-2008
- Certificate
- RoHS/CE/ISO9000
Review
Description

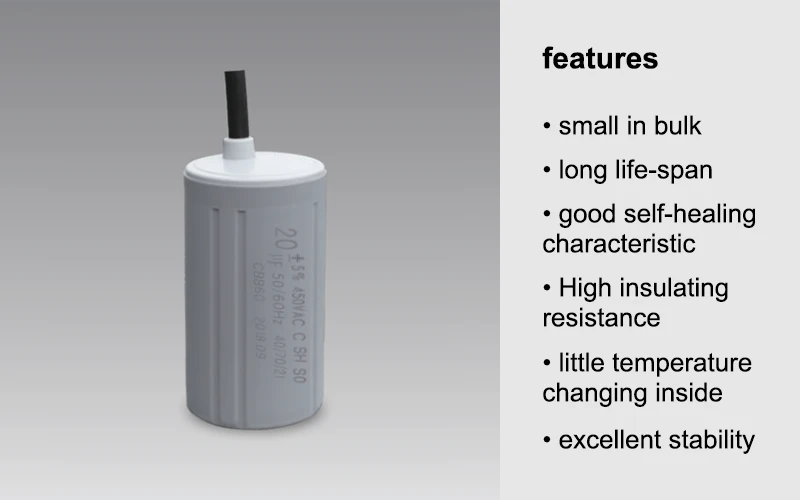

CBB60 AC MOTOR RUN FILM CAPACITOR WITH CABLE
1.Use round plastic shell, and insulation sealed lid for sealing plastic lid for sealing.
2.Flat bottom

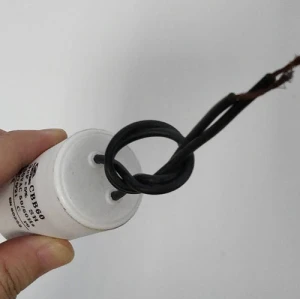

3.Fasten terminals: cable.
4.Plastic can be ABS or PC
5.Shell color: gray
CBB60 AC MOTOR RUN FILM CAPACITOR WITH CABLE ANATOMY
CBB60 AC MOTOR RUN FILM CAPACITOR WITH CABLE SPECIFICATION
CBB60 AC MOTOR RUN FILM CAPACITOR WITH CABLE USAGES
CBB60 AC MOTOR RUN FILM CAPACITOR WITH CABLE SIZE LIST
CBB60 cable type size list | |||||
Capacity（uf） | Size (450V) | Size (250V) | Capacity（uf） | Size (450V) | Size (250V) |
1uf | 30*60 | 30*60 | 18uf | 40*70 | 35*60 |
2uf | 30*60 | 30*60 | 20uf | 40*70 | 35*60 |
3uf | 30*60 | 30*60 | 25uf | 45*70 | 35*70 |
4uf | 30*60 | 30*60 | 30uf | 45*70 | 40*70 |
5uf | 30*60 | 30*60 | 35uf | 45*93 | 40*70 |
6uf | 30*60 | 30*60 | 40uf | 45*93 | 40*70 |
7uf | 30*60 | 30*60 | 45uf | 50*92 | 45*70 |
8uf | 35*60 | 30*60 | 50uf | 50*92 | 45*70 |
9uf | 35*60 | 30*60 | 55uf | 50*92 | 45*93 |
10uf | 35*60 | 30*60 | 60uf | 50*100 | 45*93 |
12uf | 35*70 | 30*60 | 70uf | 55*120 | 50*92 |
14uf | 35*70 | 30*60 | 80uf | 55*120 | 50*92 |
15uf | 40*70 | 35*60 | 90uf | 55*120 | 50*100 |
16uf | 40*70 | 35*60 | 100uf | 55*120 | 50*100 |
